This is the CE certified model for use in the European Union and UK.
915 MHz remote camera control that feels like magic.
Specifications
Dimensions • 81.13 mm x 51.2 mm x 21.8 mm (3.19 x 2.01 x 1.38 inches)
Weight • Less than 100g / 3.5oz
Materials • Black anodized 6061 & 7075 aluminum housing • Sustainable plastic button & switch elements
Mechanical Interface
Built in: • 1/4-20 threaded hole with ARRI and SmallHD anti-rotation patterns • 15mm grid of ten M4 mounting holes • 20mm grid of seven M2.5 mounting holes (compatible with Wooden Camera mini accessory rails)
Human Interface

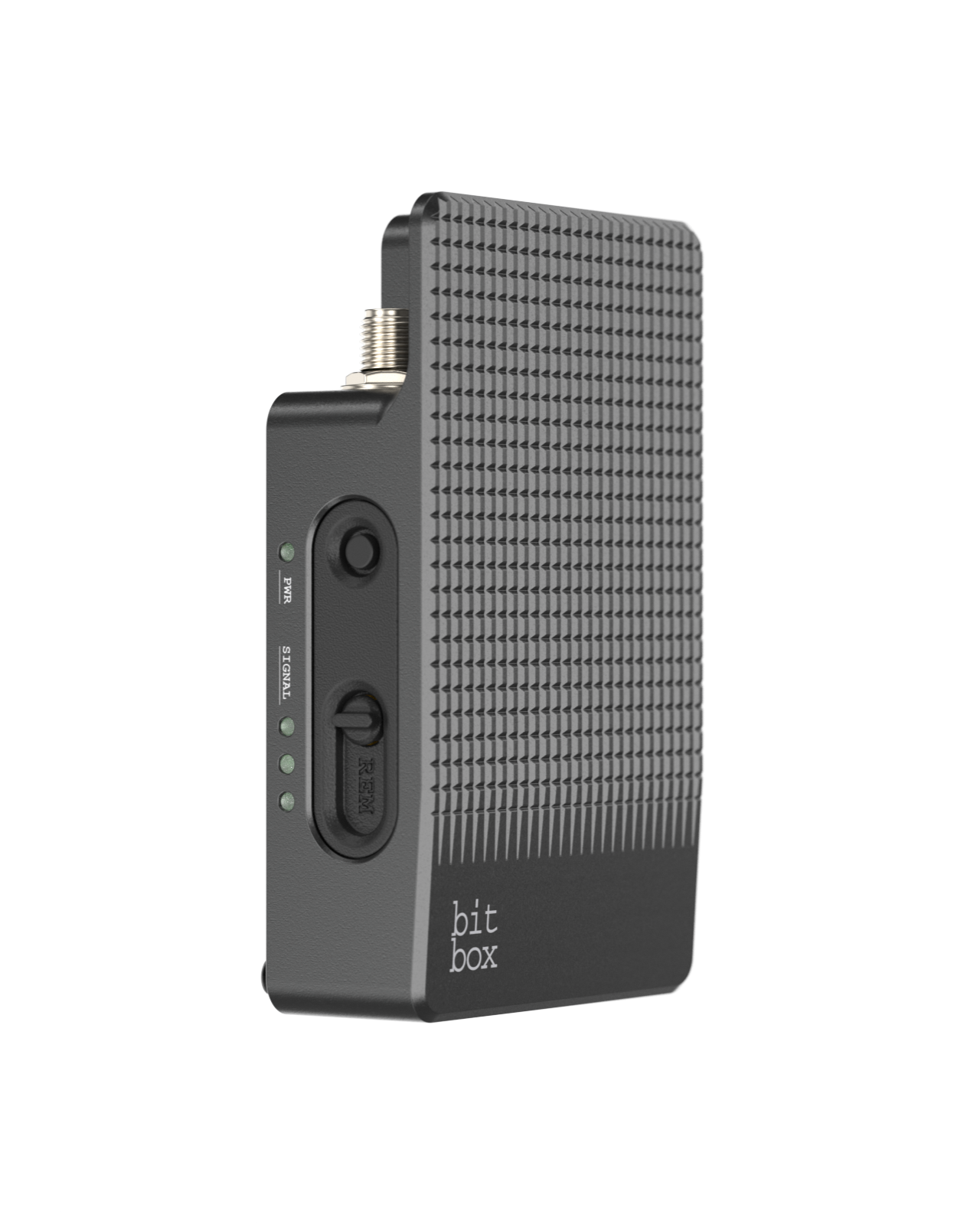

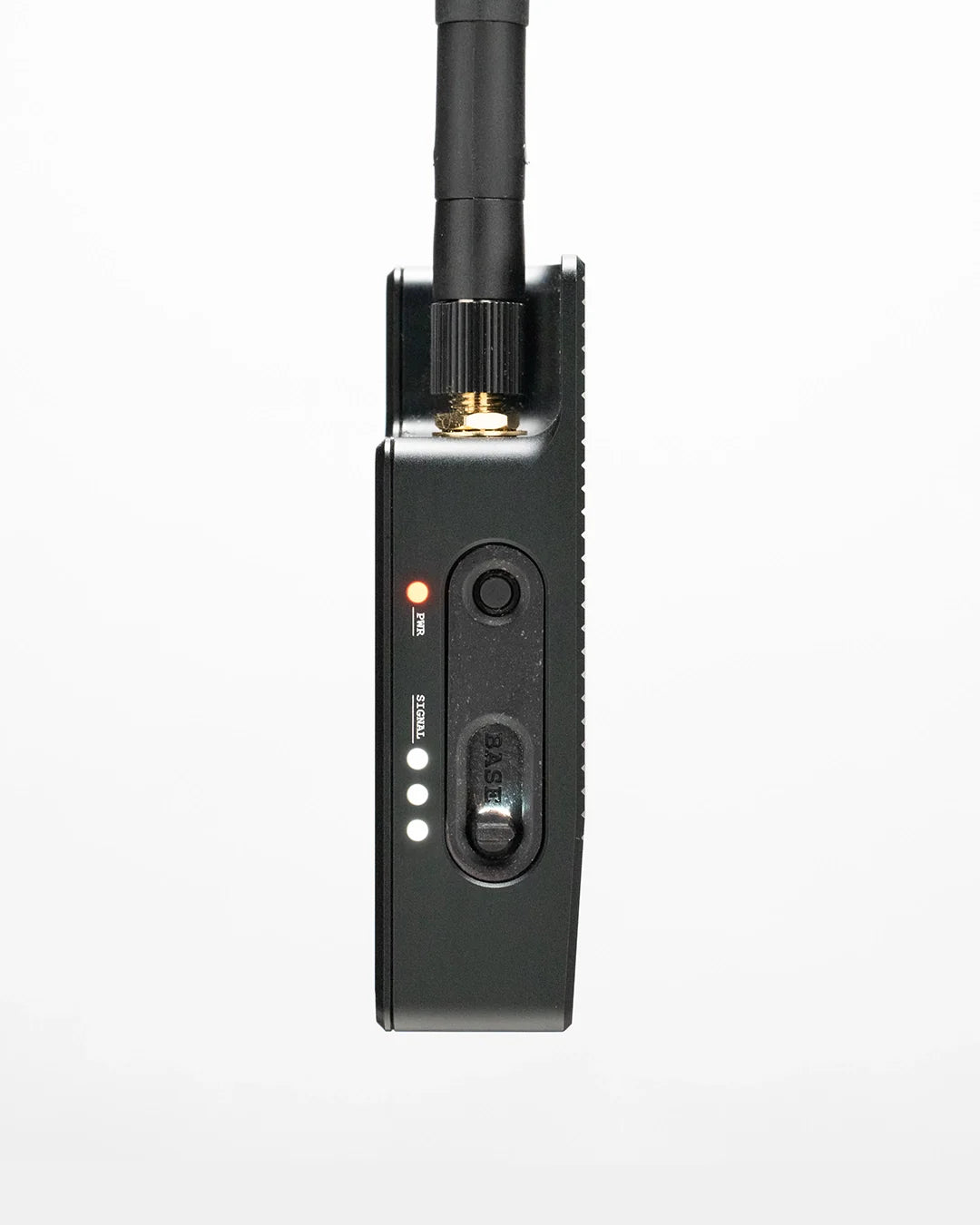

• Pairing Button • Power light • Signal level lights • Base Station / Remote Radio Selector Switch with Pairing Light

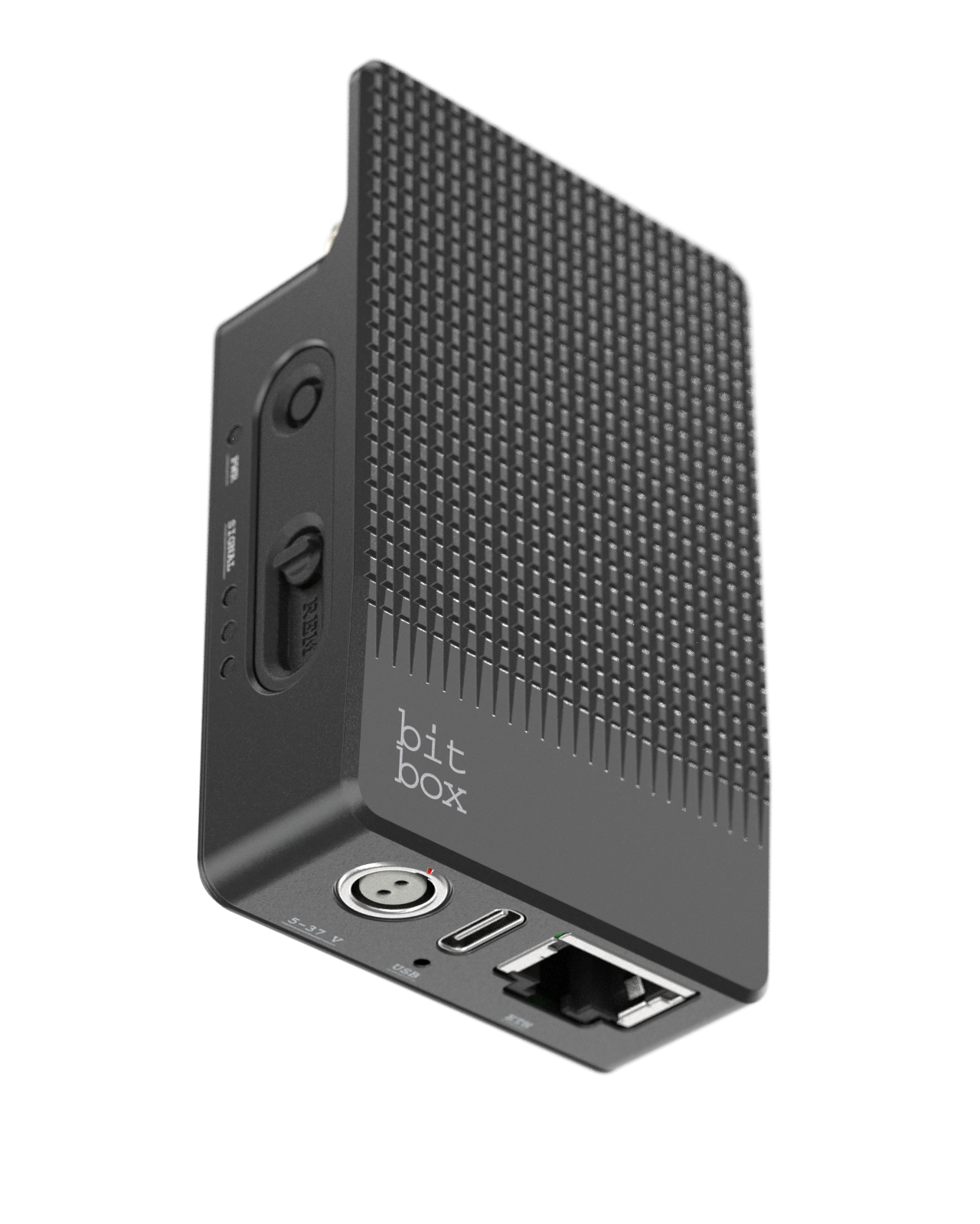

Connectors
Antenna • Field-replaceable antenna
2-pin Lemo 0b • 11-36 volt power input, polarity agnostic
USB-C • 5 volt power input or output • USB Ethernet chipset (connect to devices without Ethernet ports) • Radio diagnostics, advanced configuration, and firmware upgrade
Ethernet jack • Gigabit Ethernet
What's in the box:
bitbox (868MHz / EU)
Articulating RP-SMA antenna (manufactured by TE Connectivity)
